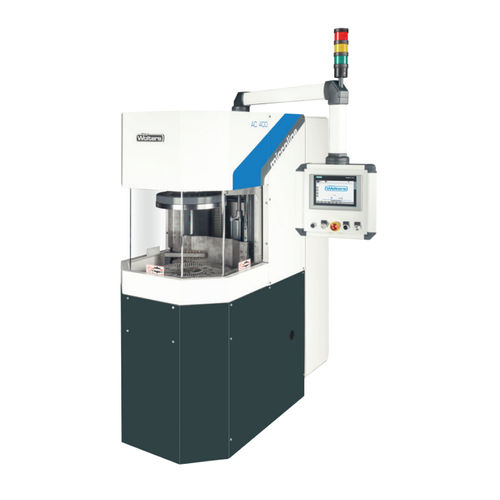

Lapping finishing machine AC microLine® 400-D

polishingdeburringgrinding

PETER WOLTERS AC microLine® 400-D double-side batchprocessing machine has been designed forhigh-precision series processing work pieces. Dueto its modular construction, AC 400 can be usedas a fine grinding, lapping, honing, deburring, andpolishing machine. MACHINE FEATURES Like all machines of the AC microLine® series, AC 400 is based on tried and tested core componentssuch as high-precision, pneumatic pressuresystem, non-contact micro measuring controller,powerful drive technology, and the PLC control. Software has been developed by PETER WOLTERSwhich makes it possible to intuitively operate themachine entirely by menus. The upper wheel moves approx. 500 mm upwards. This and the design of the entire machine base allow comfortable access from three sides to the process area. The machine is available with different rotating devices, drive powers and wheel speeds to match the widest possible range of work pieces. This ensures optimum machine configuration for every application. AC 400 is available with well-known, tried and tested accessories such as gap formation, alignment device, and dosing system for fine grinding/lapping or polishing compound. Accessories such as measuring sensor and post-process measurement provide data for statistical process control and offer process security when processing critical work pieces. DataCare®, the proprietary analysis tool, captures all controller data and thus is the perfect platform for analytic process evaluation, optimization and fault analysis. AC 400 can load and process work pieces with a maximum diameter of 100 mm and a maximum thickness of 50 mm. Designed for high-precision production of small work pieces
