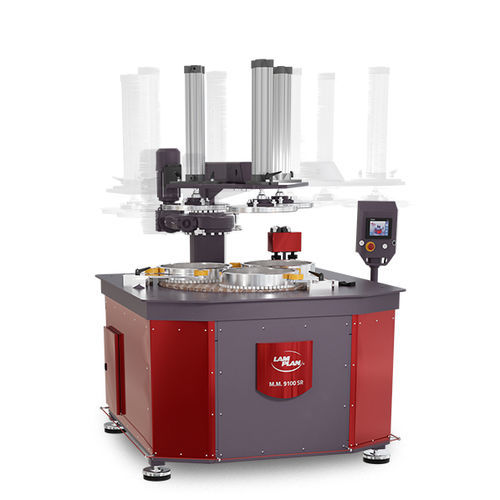

Polishing lapping machine M.M.9100 series

bench-toppneumaticfor aeronautics

Lapping techniques with heavy loads and intensive use require a suitably durable material. This is offered by the LAM PLAN mid and large diameter range of machines. The rigidity of their structures and the gear motor group torque are especially suited to the high abrasion of LAM PLAN lapping plates. The number of peripheral devices available make the machines particularly versatile and effective. Specific equipment can be offered according to requirements. The S, SR and EC type lapping machines are equipped with pneumatic pressure systems of different powers. All M.M.9000 series machines are fitted with an integrated modem as standard in order to carry out remote maintenance operations. They are compatible with dedicated LAM PLAN distribution systems and can be optionally fitted with an abrasive and lubricant level sensor. Production data collection in the form of CSV files is possible via the USB interface. Option LAM PLAN AUTOPLAN AUTOPLAN system enables to manage efficiently the flatness and the grooving of the plate. It is installable and removable in a few minutes thanks to fixation points integrated to the machine. Capacity per ring 1 part Ø 350 mm or 225 pièces Ø 10 mm Number of rings 3 Electric power supply 400 V - 50 Hz - 3 phases + earth + neutral Motor Power 5.5 kW Pressure application system 3 weights of 28 kg included Control Touch screen 5,7 inches Plate rotation speed From 15 to 50 tr/min Dim. (W x H x D) 1900 x 1800 x 1500 mm Weight (without plate) 1000 kg Abrasive distribution system Included Type depending on the plate
