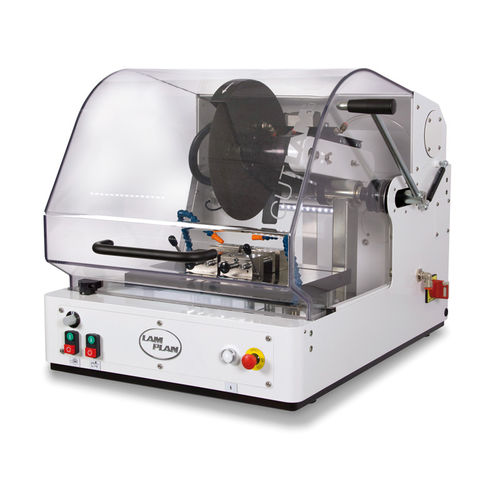

Metal cutting machine CUTLAM® 1.1

discfor aeronautics

A bench-mounted cutting machine for a wide range of applications. Robust and easy to use, with a deported motor design, this machine has a very large cutting capacity. It allows you to equip your laboratory with a simple, versatile and reasonably-priced machine made from high-quality components. This machine offers a spacious cutting table, made of treated anti corrosive cast iron. It is also easy to handle with a fully opening cover and remote motor. The 4 perpendicular grooves enable you to clamp components of thicknesses up to 120 mm. The CUTLAM®1.1 can be equipped with Ø 250 to 305 mm cut-off wheels. Fitted with a speed adjuster and a powerful 3.8 Kw motor particularly adapted to Ø 305 mm wheels, the CUTLAM®1.1 is perfect for intensive use. The high-capacity recirculation system with pre-filter and decanter compartments ensures optimum lubrication and cooling by a multi-point spray. Example of applications 1 Cutting of a sphere One of the recurrent issues remaining in the cutting processes is the clamping of spherical parts. The implementation of this kind of vice on the cutlam®1.1 enables to cut spheres having a diameter going from 30 mm to 60 mm. Example of applications 2 Cutting of a glass cylinder with double wheel Tools for removing a 3 mm slice from a Ø 50 mm glass cylinder, height 50 mm. This article includes the supply and installation of a specific clamping and a double wheel on a CUTLAM® 1.1 machine. The cutting chamber is illuminated by a strong and trendy aluminium projector.
