MFD ECMDU

EFIS1024 x 768for aircraft

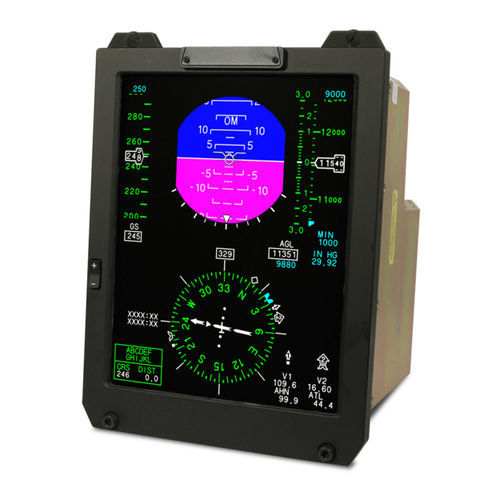

This versatile 10.3-inch-viewable, AMLCD-based video display provides a wide range of vital flight information for flight crews. KEY FEATURES: Enhanced multipurpose cockpit display High-resolution XGA (122 CGPI), 8-bit color display Hemispherical, high-contrast ±60° viewing angle Luminance range from 0.03 fL to 250+ fL with NVIS ADVANCED GRAPHICS CAPABILITIES The ECMDU features DO-178B, Level A-certified embedded processing/graphics. It also features mission video capture/graphics processing with video rotation, scaling and panning capability. The unit uses DO-178B, Level A software to process its data. The ECMDU is a sunlight readable display that is night vision compatible. WIDE RANGE OF FEATURES The ECMDU is a very versatile display unit with a wide range of features. It has minimal X, Y, Z dimensions. The unit features digital TAXI bus video, includes a MIL-STD-1553 interface, and meets full MIL environments. It offers various EFIS, MFD, EICAS and video bezel options. The ECMDU is lightweight and requires low power, operating from 28 VDC. Specifications Addressability - Flexible autoscaling Color - 8-bit (16.7M colors)/256 gray shades Luminance - 0.03 fL to 250+ fL Viewing Angles - ±60° horizontal, +50°/-20° vertical High Ambient Contrast Ratio - > 5:1 over entire viewing cone NVIS - Gen. III, Type I, Class B compliant Cooling - Internal fan Primary Power - 28 VDC, 78 W nominal (143 W max.) Bezel Configuration - EFIS, MFD, custom Video Interfaces - Digital TAXI bus, DVI, RGB, NTSC, ARINC 708 Video Out - Y/C, NTSC Signal Interfaces - MIL-STD-1553B, Ethernet Inclinometer (Optional) Shock - 15G op., 30G CS Vibration - Method 514.4, MIL-STD-810E
