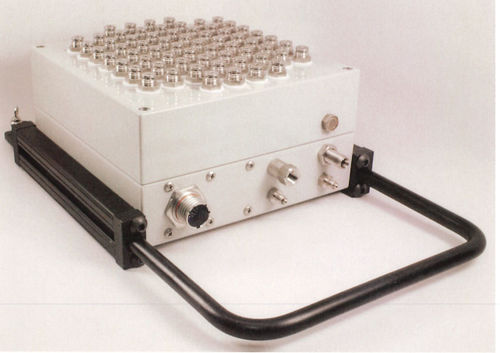

64-channel pressure scanner KMPS-6A

gasEthernet

The KMPS-6A was designed for use in environments with the potential for explosive gases in the environment (Class I Div II, ATEX Zone 2). It features a purged interior in which a positive pressure is maintained at all times. It also features 64 individual quick connects for easy installation of stainless steel tubing in an industrial environment. The single input line is switched using solenoids to allow routing of control pressures with a minimum number of lines going to the KMPS-6A Available Channels - - 64 Pressure range - - 1 - 1000 PSID 15- 1000 PSIA Operating Temperature Range - - -65°F to 255°F (-55°C to 120°C) Compensated Temperature Range - - -20°F to 255°F (-30°C to 120°C) Static Accuracy - - 0.05% typ. Dimensions - - Width: 7.9” Length: 7.9" Height: 4.1” Weight - - 3.0 kg Ambient pressure - - 30 PSIA Sample Rate - - 275 samples/channel/sec Connections - - Electrical connector : D38999/23YC35CN Excitation - - 20 -32VDC Max Current - - 0.25 A + 2.0 A for solenoid Resolution - - 24 Bit Over Pressure - - 2X Rated Pressure (Max of 1000 PSIA) Burst Pressure - - 3X Rated Pressure Leak Rate for each channel - - < 0.005% full scale/sec
