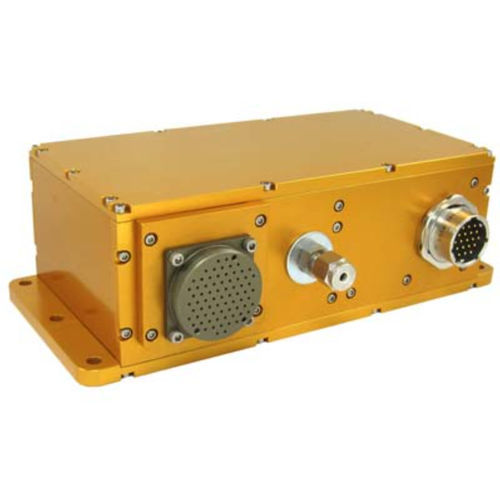

64-channel pressure scanner KMPS-2

gasdigitalfor flight testing

The KMPS-2 was developed for the flight test market. It features a rugged aluminum enclosures with pneumatic quick connects for easy installation and removal. It also features a heater to prevent icing and an optional motor to activate purging electronically. The KMPS-2 has extra EMI and ESD protection for the flight test environment. • High Accuracy Digital Compensation • High Speed Digital Output (RS-485 or Ethernet) • No External Heating or Cooling Needed • Wide Temperature Range -65°F to +255°F (-55°C to +125°C) • Auto Zero • Integral Purge • IEEE-1588 Timing • Silicon on Silicon Integrated Sensor VIS® • Patented Design The KMPS-2-64 is a 64 position pressure scanner with high accuracy digital output over either an RS-485 or Ethernet bus. There is an internal heater which keeps the internal temperature above freezing to avoid internal icing. An optional motor allows for digital control over the purge mechanism. The KMPS also features auto-zero capabilities. The KMPS-2-64 is ideally suited for the flight test market. The Ethernet version features IEEE-1588 timing for precise correlation between multiple devices on the network. The pressure sensors are vibration and moisture resistant leading to extreme reliability. Modules with 16 sensors each are individually replaceable by the user. This allows for different pressure ranges and modes (differential and absolute) in the same scanner. For additional details see manual (KM 8001).
