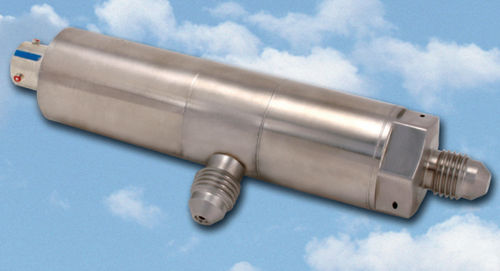

Differential pressure sensor APTE-51W-1000

mVVdcOEM

High Natural Frequencies Unprecedented Stability And Reliability To High Temperatures (Ruggedized Internal Construction) Leakproof, All Welded Construction (No Leak After Exposure To 2000°F 1093°C) Utmost In Safety (Secondary Containment Of Pressure Media) Fully Qualified (Passed Extensive Environmental Tests, RTCA/DO-160F) FAA Manufacturer’s Maintenance Facility Excitation 10VDC Regulated 28VDC ± 4V Output 100mV (Typ.) 5VDC Diff. or Single Ended Power Consumption 100mW (Typ.) 280mW (Typ.) Input Impedance 1000 Ohms (Min.) N/A Output Impedance 2000 Ohms (Max.) 100 Ohms (Max.) Weight 0.45 Lb. (Max.) 0.6 Lb. (Max.) Case Outline Case Length May Vary With Range, Measuring Mode, Pressure Port and Connector Construction Materials 316 SS And 17-4 PH SS Line Pressure 4 Times Rated Pressure Proof Pressure 2 Times Rated Pressure Range Burst Pressure 5 Times Rated Pressure Range Insulation Resistance 100 Megohms Min. @ 50VDC Mounting Torque 75 Inch-Pounds (Max.)
