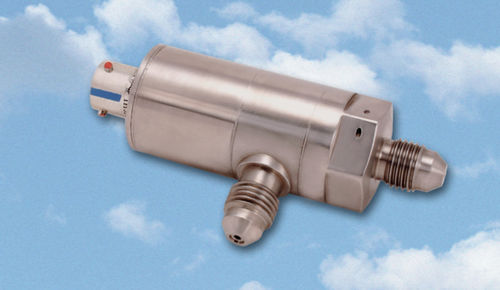

Differential pressure sensor APT-51HL-1000

mVVdcOEM

Developed For Use With High Line Pressure Compared To Low Differential Pressure Ideal For Measuring Pressure Drop Across Filters To Monitor Filter Clogging High Natural Frequencies Unprecedented Stability And Reliability To High Temperatures (Ruggedized Internal Construction) Leakproof, All Welded Construction (No Leak After Exposure To 2000°F 1093°C) Utmost In Safety (Secondary Containment Of Pressure Media) Fully Qualified (Passed Extensive Environmental Tests, RTCA/DO-160F) FAA Manufacturer’s Maintenance Facility Excitation Output Power Consumption Input Impedance Output Impedance Operating Temperature Range Weight Case Outline Construction Materials Line Pressure Proof Pressure Burst Pressure Insulation Résistance Mounting Torque Total Error Band Resolution MTBF 10VDC Regulated - 28VDC ± 4V 100mV (Typ.) - 5VDC Diff. or Single Ended 100mW (Typ.) - 280mW (Typ.) 1000 Ohms (Min.) - N/A 2000 Ohms (Max.) - 100 Ohms (Max.) 0.45 Lb. (Max.) - 0.6 Lb. (Max.) Case Length May Vary With Range, Measuring Mode, Pressure Port and Connector 316 SS And 17-4 PH SS 2 Times Rated Pressure Range 5 Times Rated Pressure Range 100 Megohms Min. @ 50VDC 75 Inch-Pounds (Max.) Infinitésimal At Least 30,000 Hours
