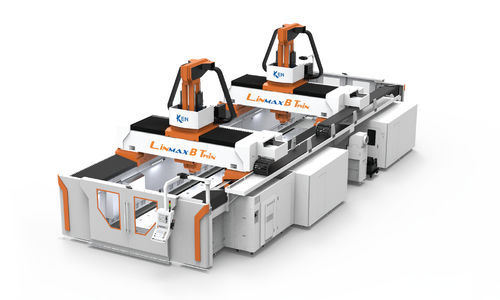

5-axis machining center Linmax BTwin series

verticalfor the aerospace industryCNC

Double Gantry type structure X/Y axis adopt linear motor drive Box-in-box symmetrical design One-piece base column design Rapid feedrate 60m/min(Max) European torque motor direct-drive milling head Gantry Type Structure Overhead, weight-optimized and structurally rigid portal moving tn the X-axis, for high dynamic performance and precision. 1. Gantry type design, all axial components (X / Y / Z / B/ C axis) is movement on the top of the column. 2. The work piece is fixed on the table so that the weight of the work piece does not affect the machine performance. 3. European advanced FEM analysis and design optimization for higher rigidity and response. The column is one-piece design, high rigidity high vibration resistance, to ensure that the machine can reach excellent cutting and dynamic performance.
