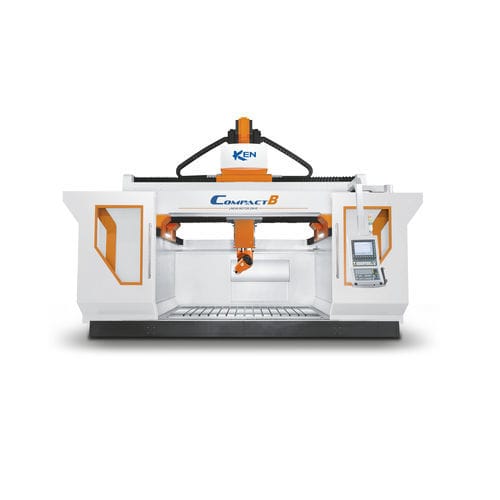

5-axis machining center Compact B series

verticalfor the aerospace industryCNC

Gantry Type Box in Box Symmetrical Design High Rigidity U-shpaed Column and Base X/Y-Axis Linear Motor Drive Feedrate: 60m/min Direct-Drive Motor Two-Axis Milling Head Gantry type design,all axial components (X/Y/Z/B/C axis) is moving above of the column. The weight of work piece does not affect the machine performance. High rigid U-shaped column and base design Improves the overall structural rigidity Ensure the stability of precision and Precision & Mechanical performance Heat deformation Minimized even after long period of usage 1. Box-in-box design had spindle locating at the center of crossbeam and saddle 2. Symmetrical construction makes the machine less susceptible to adverse ambient conditions
