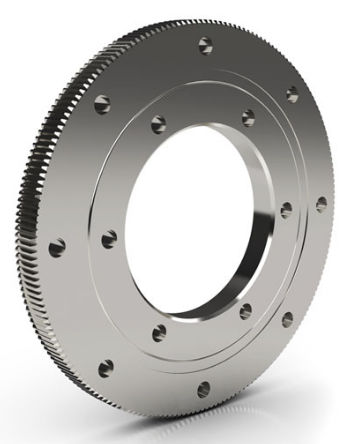

Ball bearing bearing T01 series

radialaxialfour-point contact

Here's another one of Kaydon's wide variety of bearing solutions. The Reali-Slim TT® series includes the first small-scale, thin section turntable bearings designed for demanding applications. Reali-Slim TT® series turntable bearings save weight, reduce product design envelope sizes and increase design flexibility. Reali-Slim TT® bearings offer significant advantages vs. conventional slewing ring bearings, including: Smaller size (smallest bore size is 1.5 inches, the largest is 6.0 inches, and the height is only .25 inch) Greater accuracy—the extended radial bearing section increases rigidity, and optional preload or clearances meet application torque or deflection requirements Easier to use—fast installation and change-out Available in custom configurations: many drive options, gearing/timing belt, mounting hole types Designed to withstand harsh operating environments when specified with AISI-440C steel races and steel-reinforced seals Design features Reali-Slim TT® series turntable bearings are a proven, single four-point contact ball radial design, consisting of a single row of balls with a unique "gothic arch" raceway and one-piece separators for low frictional torque. Radial, axial and moment-load capable, Reali-Slim TT® turntable bearings are shipped pre-lubricated and ready for use. Installation is fast and easy; the bearing is positioned on the mounting face and tightened down by mounting screws. Availability Versions are available with optional internal or external spur gear, or in non-geared designs. The geared versions are 64 diametric pitch with 20° pressure angle, AGMA Class 10, and provide low backlash.
