Metal cutting machine KASTObbs A 3x20

discfor aeronautics

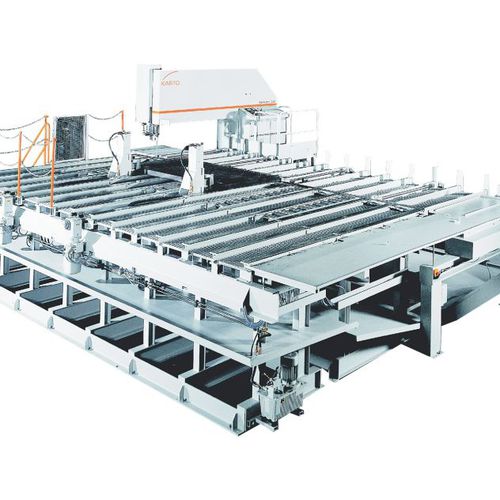

KASTObbs A 3x20 By the long cut working method, the KASTObbs A 3x20 block bandsawing machine allows to cut square or flat material with different sizes of cross section from rolled blocks or rolled plates. Infinitely variable bandsaw blade speed Using bi-metal or carbide saw blades, all material qualities, including difficult to cut materials such as titanium, hastelloy and inconel can be cut with a strong cutting performance The fully welded, distortion-free construction of the saw head, with adjustable height of the blade guides, ensures quiet running and vibration-free working for accurate results, shorter cutting times and longer tool life. The workpiece is locked on the saw table. This reduces the machine footprint by approx. 50 %, resulting in lower space costs. Technical dataKASTObbs A 3x20 Cutting range Cutting height without BandControl 420 mm Cutting height with BandControl 360 mm Cutting depth in automatic cycle 1.960 mm Available with the following cutting lengths Mass and height Length 7.900 mm Width protecting cap opened approx. 7.350 mm Height without laser approx. 3.750 mm Weight of saw unit approx. 6.000 kg Height of table support approx. 1.800 mm Plates feed unit Remnant length 50 mm Cutting range 3.100 mm in automatic mode, 4.000 mm im in single cut operation Supporting surface of front table (length x width) 4.000x3.000 mm Carrying capacity of front table 32 t Length of the complete installation approx. 7.900 mm Weight of material supporting tables approx. 13.000 kg Max. length of plate 3.000 mm
