Metal cutting machine KASTOhba A 10x12

discfor aeronautics

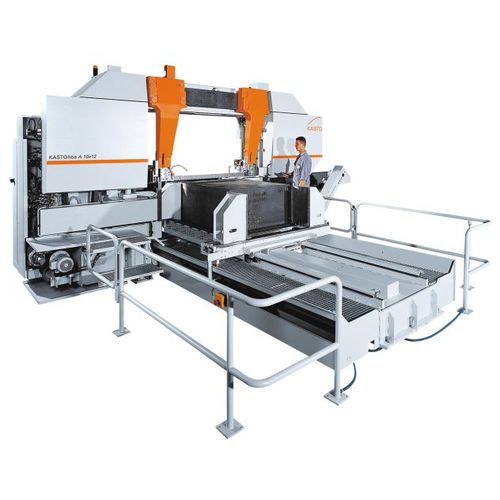

KASTOhba A 10x12 Fully hydraulic and automatic high-performance bandsawing machine of robust construction, with saw blade moving parallel in horizontal direction, for cutting of profiles, tubes and solid material of all qualities and of material which is difficult to cut (e.g. titanium, Hastelloy, Inconel). exceptionally solid construction, high rigidity extremely good vibration dampening Short cutting times and hight cutting performance Hydraulic horizontal clamping vise with side shift cylinder of the fixed clamping jaw Saw head and band guides adjustment automatically via light barriers to material height and material width Cutting range Form Cutting range 1.060x1.260 mm / 1.060x1.060 mm / 1.060 mm Clamping range 300-1.260 mm Smallest dimension to be cut Ø300 mm Shortest remnant length individual cut 20 mm Shortest length of residual piece, automatic operation 100 mm Shortest length of cut-off piece 10 mm
