Optical coordinate measuring machine KNM 2X

for aeronauticsCNC

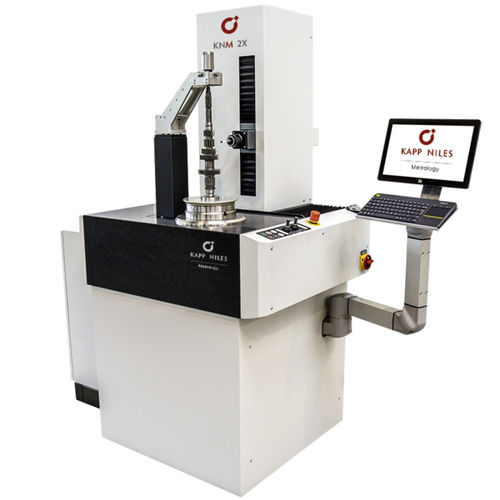

Measuring machines for small and medium-sized workpieces up to 1,250 mm The KNM 2X / 5X / 9X analytical measuring machines are designed for high-precision measurements of gears, gear tools and rotationally symmetric workpieces. All guides and base plates made of granite are extremely stable in the long-term and have identically low expansion coefficients. Air bearings with emergency operation properties ensure perfect and wearfree guides without short-term errors. Air spring elements underneath the base plates safely shield from jolts and vibrations. Special bases are not required. Non-ferrous linear and torque motors of the rotary tables ensure ultimate position precisions and path accuracy. Despite the compact design, spacious travel ranges ensure a tangential generating motion towards the base circle for any profile. Based on the requirements, different scanning touch probe systems can be used. The control cabinet can be arranged freely.
