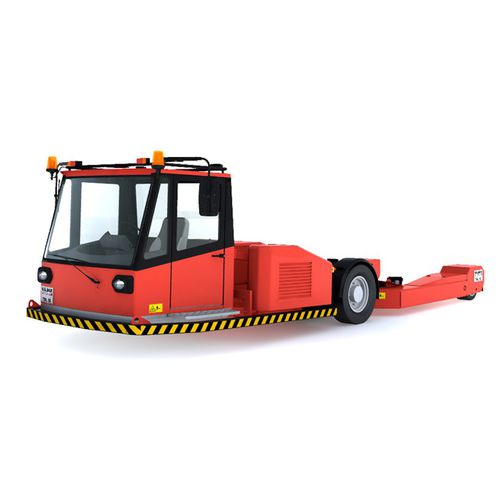

Towing tractor TBL 50

pushbackfor aircraftelectric

To meet the requirements for handling regional aircraft types is an expanding market sector. The TBL-50 is designed for pushback and maintenance towing of commuter for example: ATR, Dash 8, Embraer, SAAB and even up to B737 as well as A320. A complete new design and patent for the docking device "cradle" is the base for this tractor. The force monitoring system (F.A.C.T.®) enables constant and accurate measuring of tow and brake force as well as turn force and angle, thus making it possible to handle commuter aircrafts towbarless with absolute security. In line with all other KALMAR- TBL tractors the TBL 50 is able to dock without moving or lifting the aircraft. The cabin is equipped with our unique gas-hydraulic suspension, giving a superb comfort to the driver. Examples of optional extras: Electrical heated windscreens Air conditioning Winter kit Automatic lubrication system Weight: 6,800 kg DIMENSIONS AND WEIGHT Length: 7,050 mm Width: 2,440 mm Height: 2,050 mm Ground clearance: 100 mm Wheelbase: 3,174 mm Turning circle radius: 10,020 mm Dry weight: 6,500 kg ENGINE Make/Model: Deutz TCD 3,6 Type: 4-Cyl Euro Stage 3b, EPA Tier 4I Power output: 75 kW Cooling: Liquid cooled Fuel: Diesel TRANSMISSION Make/Model: DANA-Spicer T12000 Type: Torque converter powershift transmission Speed: 4 forward and 3 reverse AXLES Front: Make/Model: DANA-Spicer Tyre type/ dimension: Pneumatic 265/70 R19.5 Rear: Make/Model: Poclain individually suspensioned hubs Tyre type/ dimension: Solid 18x9x12 1/8
