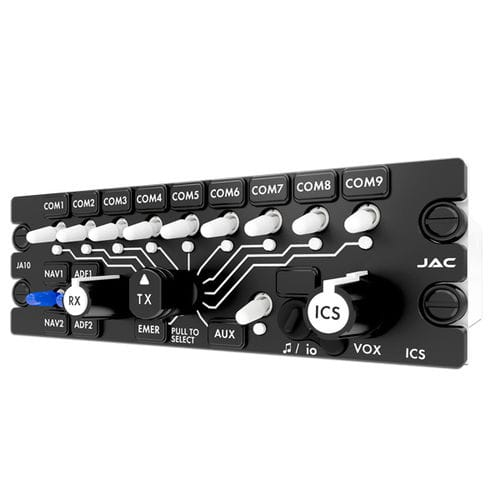

Audio panel JA10-001

VHFfor aircraftpanel-mount

The JA10-001 Audio Controller has been designed to meet the increasing radio communications requirements for many operators, with a capability to control up to ten transceivers. Occupying the same panel space as the JA94/95 series, this audio controller is a compact, lightweight solution incorporating the latest technology. The unit will support up to eight users, pilot, co-pilot and up to six passengers. By using a Windows® based application (ProCS™), configuration settings may be changed via a 3.5mm jack socket on the front panel. Field replaceable illuminated legends mean that the dealer only needs to order one version of the controller for many different mission configurations. • Up to 8 users • Field configurable settings • Field replaceable legends • Adjustable output and input levels • Balanced ICS, CVR, & transmit mic. • Adjustable CVR output level • Front panel music input • 5, 14 and 28 Vdc lighting voltage selection • Music muting • Individual mic. gating • Tx capability for 4 users • Transmit select annunciators • ICS PTT for all users Eight User - 10 Transceivers - Audio Controller Headsets: 8 Output: 250 mW into each 8 or 600 ohm phones Transceivers: 10 Receivers: 4 + 4 Direct Weight: 2.49 lbs [1.13 kg] MAX. Power: 28Vdc Legends: Removable Contact JAC for TSO status
