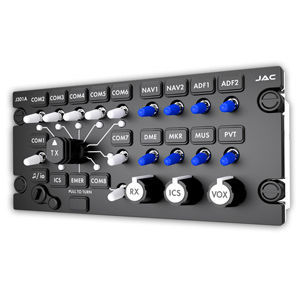

Audio panel J301A-001

VHFfor aircraftpanel-mount

The J301A-001 audio controller is a compact, lightweight unit that is compatible with the current industry standard interconnect. The unit will support one low impedance headset (5 ohm mic and 8 ohm phones) or one high impedance headset (150 ohm amplified dynamic mic and 150 ohm phones). By using a Windows® based application (ProCS™), configuration settings may be changed via a 3.5mm jack on the front panel. Field replaceable illuminated legends allow one version of the controller for many different mission configurations. Features • Field configurable settings • Field replaceable legends • Adjustable output and input levels • Balanced ICS, CVR, Rx Comp. & trans mit mic. outputs • Adjustable CVR output level • Front panel music input • 5, 14 and 28 Vdc lighting voltage selection • Music muting • Duplex mode transmission for telephone operation • Transmit select annunciators • Connector pin compatible with industry standard Transceivers8 Comm. transceivers Receiver Input6 Receivers + 4 Direct, 2 Music Inputs, 3 ICS Tie Number of Headsets1 low impedance or 1 high impedance
