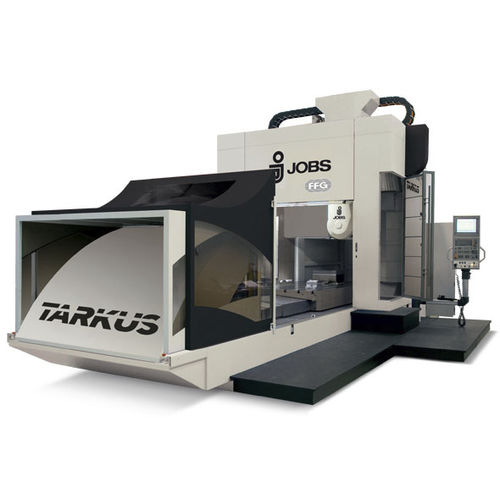

CNC milling machine TARKUS

verticalhorizontalfor the aerospace industry

Tarkus is a horizontal/vertical milling centre featuring: • Dual-Frame HV: exclusive architecture with fixed gantry in X and mobile in Z (Jobs patent) • high-volume removal capability on tough materials • maximum structural rigidity and constant precision on the entire Z vertical stroke • high dynamics in terms of acceleration and speed • constant precision on the whole operating volume • compact and ergonomic • full machine enclosure • reduced foundation requirements Double Pneumo-hydraulic counterbalance: - compensation of Y and Z axis weight - Less wear on the transmission - Higher available thrust on Z axis Reliability and accuracy Innovative H-V structure (horizontal-vertical structure, Jobs patent): - freedom to rough the part with the spindle axis horizontal and finish with the spindle axis vertical; - constant stiffness throughout the whole operating volume; - minimum distance crossbeam-table: 950mm. Very high rigidity and accuracy X axis: - 2 rails series 55 (4+4 pads) - Heidenhain pressurized scales X axis: 100 mm diameter ballscrew Extreme rigidity and accuracy Transmission: Y axis: - 2 rails series 65 (2+2 pads); - 2 x80mm diameter ballscrews; - 2 Heidenhain scales: true gantry setup Z axis: - 2 rails series 65 (2+2 pads); - 80mm diameter ballscrew. Extreme rigidity and accuracy
