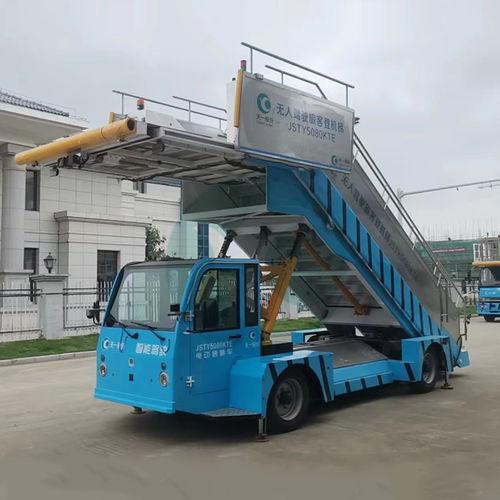

Access stairs

boardingtelescopicself-propelled

The platform on the passenger elevator is equipped with an operating device, which can operate the fine-tuning of the angle of the ladder body and the platform expansion and contraction, and the height of the tail ladder from the ground is 180mm during the normal operation, and the handrail is made of stainless steel, and the whole machine adopts the self-manufactured electric chassis, with variable frequency and stepless speed regulation. Technical Specifications： Height range of passenger elevator：2400～5800mm Platform size (L x W)：3300mm x 2810mm Sliding ladder (L x W x H)：285mm x 1500mm x 192mm Fixed ladder (L x W x H)：285mm x 1500mm x 192mm Maximum slope Angle of ladder body：38.5° Minimum ground clearance：200 mm Channel circle outer circle diameter：18200 mm wheelbase：3400 mm Front/rear wheel base：2000 mm Overall dimensions (L x W x H)：7770mm x 2400mm x 3650mm Total vehicle quality：6500kg Rated bearing capacity：(100 people) Load per step：225kg(3 persons) Front axle load：3500kg(narrow platform), 3600 (Wide platform) Rear axle load：3000kg(without awning) Maximum speed：30km/h Minimum stable speed：0.5 km/h Driving motor power：60kw Assembly voltage：347.76 V Total energy stored - Lithium Iron Phosphate Battery Pack： 60.16kwh Temperature range：-35～65°C Battery energy density - 157.18 wh/kg
