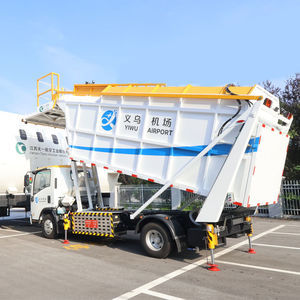

Aircraft garbage truck WTJ5060LJC

WTJ5060LJC aircraft rubbish truck is refit with Qingling's second-class chassis. The product is equipped with advanced electrical control system, and the platform has two sets of safety devices and height display circuits for docking aircraft. The product is beautiful in appearance, convenient in operation, safe and reliable in use. It can adjust the height error between the passenger ladder platform and the aircraft door. It is suitable for the use of A300, A310, A320, A330, A340, B737, B747, B757, B767, B777 and other models. Dustbin volume 15m3; Rated load of 1 ton, the maximum height of the platform from the ground can be realized 2400-5800mm, the box body with the platform rise and tilt, so that garbage can fall to the bottom, the working platform and the front end of the box hinged connection, and the tie rod will be connected to the rocer arm and the end of the diagonal beam, form a parallelogram mechanism, when the door frame lifting, the box that is around the fixed shaft of the diagonal beam and turn, The platform rotates around the box and is kept parallel to the ground at all times to allow the staff to operate. Main technical parameters serial - Project Name - Specific parameters - Part Name - Model 1 - Total length (mm) - 7895 - chassis - QL1070A5KAY 2 - Total width (mm) - 2260 - engine - 4KH1CN5HS 3 - Total height (mm) - 3500 - gearbox - MSB-5SM 4 - Wheelbase (mm) - 3815 - Front bridge - 3000010-L20PA 5 - Wheel base (front/rear) (mm) - 1504/1425 - Rear axle - 2400010-L20PA 6 - Front suspension (mm) - 1015 - tyre - 7.00R16 14PR 7 - Rear suspension (mm) - 1370 - Force extractor - SDQ51/74LGS-G 8 - Approach Angle (°) - 24 - Hydraulic pump - CBN-F50-BFHL
