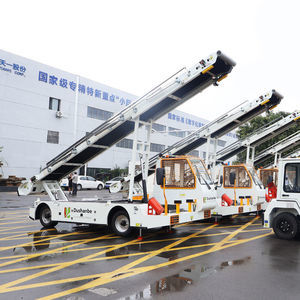

Self-propelled belt loader JSTY5040JCSE

for airport

JSTY5040JCSE bulk cargo loader (electric type) is designed and manufactured by Tianyi Joint-stock Company for loading and unloading passengers' luggage, parcels or postal parcels and other bulk items on the airport ground special motor equipment. The whole machine adopts self-made electric drive chassis, frequency conversion stepless speed regulation. Main accessories are selected famous brand products, high reliability, advanced technical performance, complete functions. Pure electric energy saving performance is superior in line with the demand for green environmental protection; Products beautiful appearance, wide lifting range, wide application, simple, safe, advanced design can be applied to B747, B757, B767, B777, DC-10, MD-11, A300, A310, A320, A330 and other models of the safe use. 2 - Height range of front end of roller frame mm - 1160---4380 - Driving motor - HCDM030HP2 3 - Height range of the rear end of the roller frame mm - 380--1560 - Drive motor controller - HC30LKPIC-K21-V1-TY 4 - Total vehicle mass (kg) - 3500 - Oil pump motor assembly - HCDM007MG1 5 - Conveyor belt width (mm) - 700 - Oil pump motor controller - HCDM007CL1 6 - Transfer frame width (mm) - 880 - Energy storage assembly - L228C01 7 - Maximum tilt foot of transfer frame (°) - 28° - Energy storage unit - CB230 8 - Uniform bearing capacity (kg) - 1080 - Steering shaft - 3000000-HY430A 9 - Load carrying capacity per unit (kg) - 400 - Drive shaft - 2400000-HY540A 10 - Transfer speed (m/s) - 0.16-0.5 - Front tyre - 215/70R15CLT 11 - Maximum speed (no load) (km/h) - 35 - Rear tyre - 215/70R15CLT 12 - Wheelbase (mm) - 2900 - Hydraulic pump - GHP2A-D-12-FG 13 - Minimum stable speed (km/h) - 0.3 - Roller motor - JS-250(030-0426)
