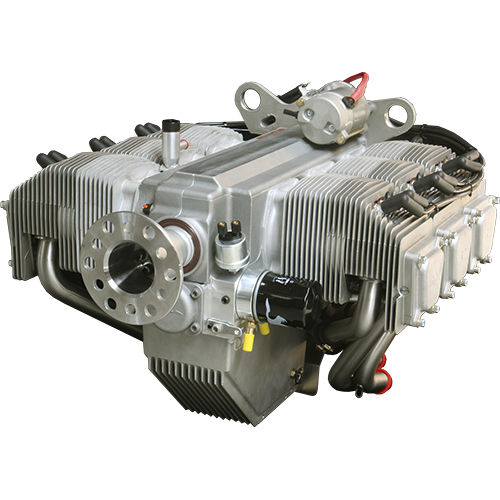

The Jabiru 3300cc Aircraft Engine is a 6-cylinder 4-stroke horizontally opposed air cooled engine. 120hp.
4 Stroke
6 Cylinder Horizontally Opposed
1 Central Camshaft
Aluminium Alloy Crankcase
Over Head Valves (OHV)
Ram Air Cooled
Wet Sump Lubrication
Direct Propeller Drive
Dual Transistorized Magneto Ignition
Integrated AC Generator
Electric Starter
Mechanical Fuel Pump
Naturally Aspirated Pressure Compensating Carburettor
Pusher & Tractor Exhaust Systems Available
8 Bearing Crankshaft
Displacement
Bore
Stroke
Compression Ratio
Direction of Rotation
of Prop Shaft
Ramp Weight
Power Rating
Fuel
Oil Capacity
Spark Plugs
3300 cc (201 cu.in.)
97.5mm
74 mm
8:1
clockwise pilot's view tractor
applications
83.5kg (185 lbs) Including exhaust,
muffler, carburettor, starter motor,
alternator, ignition system, regulator,
engine mount rubbers, starter solenoid
muffler springs
90 kW (120 hp) @ 3300 RPM
AvGas 100/130,
MoGas 95 octane & above
3.5I (3.69 quarts)
NGK D9EA automotive
