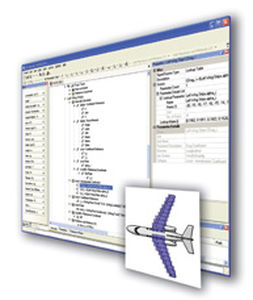

AERODYNAMIC STRIP THEORY J2 Elements utilises integrated strip theory to calculate total aerodynamic coefficients and derivatives automatically. This advanced plug-in provides rapid analysis and the ability to investigate different configurations, wing planforms and airfoil characteristics – all without the need to calculate complex derivatives and coefficients. KEY FEATURES AND BENEFITS Break a lifting surface down into individual strips You have the ability to define the number of strips along the surface for increased fidelity Each strip can be individually sized Enables you to define strips on any wing planform to investigate various shapes Strips can have their own coefficients Define the airfoil section coefficients and let j2 Elements do the rest Local angle of attack automatically calculated This enables the lift distribution to be calculated dependent upon planform, dihedral and twist Automatically calculates the dynamic characteristics Dynamic effects can be found without the need to calculate derivatives Velocity changes shown on each strip Illustrating changes due to Roll, Yaw as well as Pitch
