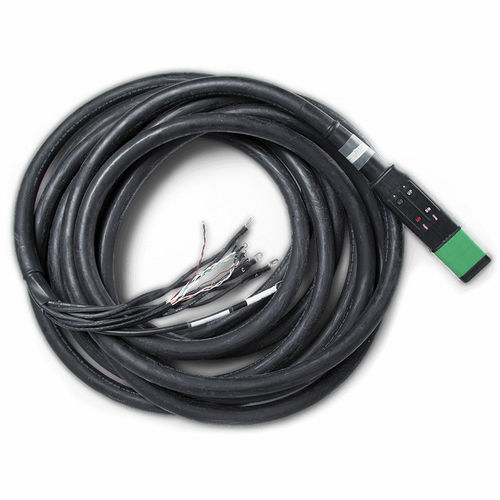

Airplane cable
powermodularUL

airplane cable
airplane cable
airplane cable
airplane cable
airplane cable
Add to favorites
Compare this product


Characteristics

Applications
for airplane
Type
power
Configuration
modular
Other characteristics
UL
Nominal voltage

600 V

Temperature range

Max.: 90 °C
(194 °F)

Min.: -50 °C
(-58 °F)

Description

ITW GSE has built its reputation on our quality cables. ITW GSE's Modular 400 Hz Cable Assemblies provide the best design with the maximum number of options. Our streamlined 400 Hz connector provides greater versatility for today's aircraft and future aircraft requirements. Performance Features Cost effective – modular design, superior construction and durability reduce life cycle costs and increases productivity. Plug-in switch modules – allows for in-field replacement in merely 3-5 minutes with no wiring. Gold plated contacts ensure superior electrical connections in the most adverse conditions. Available in ON/OFF, UP/DOWN, IN/OUT, and or LED‘s. High performance – reduces phase unbalance by 97%, voltage drop by 35% over banded cable. Patented high visibility replacement contact section (nose) – allows for in-field replacement in 3-5 minutes and extends the cable lifetime. Cost effective due to modular 400 Hz cable design to reduce life cycle costs and increase productivity Thermgard protection automatically senses heat build-up (hot plug) Cable assemblies ETL listed to UL standards, this is especially critical for airport requirements. Power Conductors: 6 each, AWG #4 Neutral Conductor: 1 each, AWG #1 Control Conductors: 6 x 3, AWG # 18 Stranding: Class M, Extra Flexible Voltage Rating: 600 VAC Current Rating: 260 Amperes Cold Bend Rating: -50 degrees C Voltage Drop: 2.8 Volts Voltage Unbalance: > 0.20 Volts Max. Continuous Conductor Temp.: +90 degrees C Diameter: 1.65 inches Bending Radius: 10 inches Weight per foot: 2.1 lbs.
