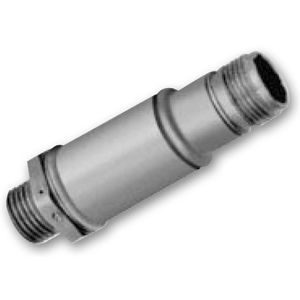

Absolute pressure switch 1193P

miniaturefor aircraft

Product Description Miniature Absolute Pressure Switch. Set point, 5 to 105 psig; Deadband, 3.5 psi or 15%, whichever is greater, to 45% of the set point. Proof pressure, up to 300 psia. Electrical, 1 amp, 28 VDC. - This hermetically sealed switch with welded stainless steel construction insures absolute setting integrity. Specifications - Set point range from 5 to 105 psia - Deadband range from 3.5 psi or 15%, whichever is greater, to 45% of the set point - Proof pressure up to 300 psia - Pressure capsule all stainless steel, heliarc weldedand leak proof to 1 X 10-9SCC/SEC• - -- - SPDT snap action switch element - Electrical rating 1 amp 28 VDC, 200 volts dielectric - Electrical chamber hermetically sealed per MIL-HDBK-5400 Para. 3.8 - Temperature Range: - Ambient-65°F to +275°F (-54°C to +135°C) - Media-65°F to +400°F (-54°C to +204°C) - Vibration capability to 15G’s
