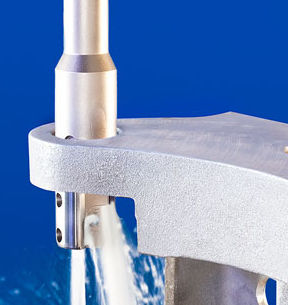

Insert reamer H-Ream

for metalsfor aeronautics

A high speed reaming system with internal coolant supply, INDEXH-REAM standard line covers reaming applications of 8-32 mm (.315-1.25") hole diameters. The indexable cutting insert has two cutting corners with 4 lead angle options and 3 rake angle variations, covering most workpiece material types. The INDEXH-REAM single indexable insert with carbide pads provides a combination of economical and highest precision results on a very wide range of materials. Advantages Economical system (2 cutting edges) Wear compensation mechanism Maximum precision Designed to achieve IT5 tolerance For extremely fine surface finish, roundness and cylindricity (due to the burnishing action, caused by the tough guiding pads) For high concentricity in interrupted applications (due to the smooth, and continuous cut) Relatively, high reaming speeds (modern coating technology and strong substrate) Effective chip evacuation Optimally directed internal coolant supply, for long tool life
