Insert turning tool SUMO-GRIP

for aeronautics

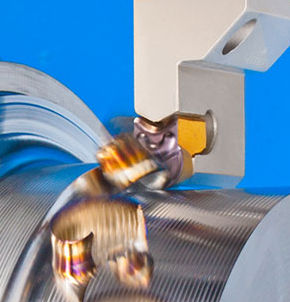

New SUMO-GRIP System for Heavy Duty Groove-Turn Applications ISCAR's single-ended insert for heavy grooving and turning applications is based on the very successful TANG-GRIP family. Features Tangentially oriented pocket creates a very rigid and secure clamping. Very strong insert design enables machining at very high feed rates of up to 1.0 mm/rev. Free, unobstructed chip flow, since there is no upper jaw as in the other clamping systems. Recommended for machining large diameter parts and heavy interrupted cuts The TAGB inserts are available in widths of 6-14 mm, full radius and straight frontal edge with 0.8 mm corner radii. They are available in the most advanced SUMO-TEC grades IC808 and IC8250. The TAGBA inserts for machining aluminum are available in a width of 8 mm with full radius, in grade IC07. The TGBHL tools feature a user-friendly clamping and extraction device. They have an internal cooling system directed to the frontal cutting edge, which increases tool life in deep grooving applications.
