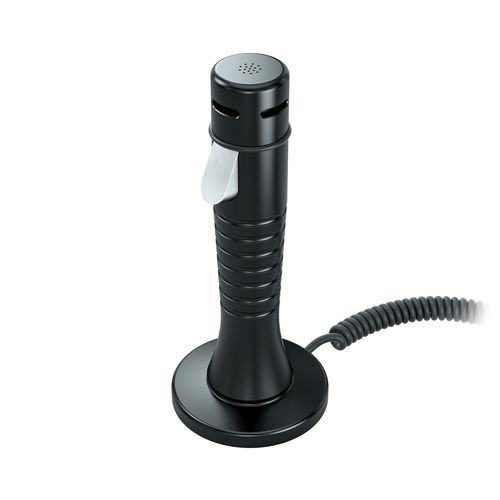

50 - 100 dB microphone HT2 BASE
5 - 10 mV/Pafor control towers

50 - 100 dB microphone
50 - 100 dB microphone
50 - 100 dB microphone
50 - 100 dB microphone
50 - 100 dB microphone
50 - 100 dB microphone
50 - 100 dB microphone
Add to favorites
Compare this product


Characteristics

Measuring range
50 - 100 dB
Sensitivity
5 - 10 mV/Pa
Applications
for control towers
Bandwidth

Min.: 50 Hz

Max.: 16,000 Hz

Temperature range

Min.: 0 °C
(32 °F)

Max.: 40 °C
(104 °F)

Description

High stability with the big foot plate Durable and long connecting cable Connection to nearly any VCS or control room system Perfect handling due to the ergonomic form Easy to use Push-To-Talk button Option with USB available The steady HT2-Base is a hand microphone type for use in dispatch and control room environments such as tower environments or else. Due to the high stability of the device, it is very easy to use. Designed for a specific customer project, it now finds it ways to other customer as well. Equipped with a handy grip and good to reach PTT button, it has all what it needs for use in the tower. The adaption to any VCS system is easily possible. The length of the cable can be individually choosen, if necessary. The HT2-Base can also be delivered with unique IMTRADEX USB technology. Inside the HT2-Base is an elektret microphone for best usabilty in the human speech frequencies, to transmit any word clearly to the recipient. The omnidirectional characteristics allows best transmission, even in stressful situations. Microphone Working principle Electret Direction Omni-Direktional Impedenz 2,2kΩ (1kHz) Frequency range 50Hz - 16kHz Sensitivity 7,9mV/Pa/ 1kHz ± 3dB Current Consumption 1,5V - 10V (DC) S/N ratio > 58dB (1kHz) PTT Taster IP protection class IP40 Other informations Weight 400g Operation temperature 0°C to +40°C Dimensions (height) 207mm

Catalogs

HT2 BASE
HT2 BASE
1 Pages
*Prices are pre-tax. They exclude delivery charges and customs duties and do not include additional charges for installation or activation options. Prices are indicative only and may vary by country, with changes to the cost of raw materials and exchange rates.
