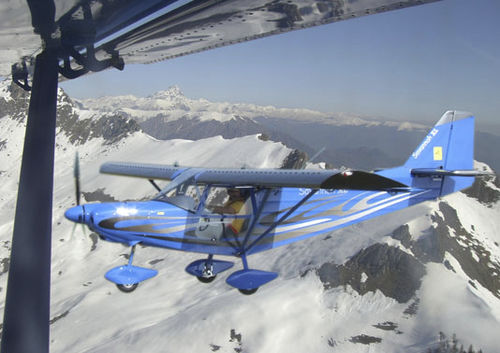

2-person ULM aircraft Savannah™ XL
4-stroke enginetouristsingle-engine

2-person ULM aircraft
2-person ULM aircraft
2-person ULM aircraft
2-person ULM aircraft
2-person ULM aircraft
2-person ULM aircraft
Add to favorites
Compare this product


Characteristics

Number of seats
2-person
Motorization
4-stroke engine
Applications
tourist
Other characteristics
single-engine
Length

6.6 m
(21'07" )

Height

2.6 m
(8'06" )

Wingspan

9 m
(29'06" )

Wing surface

12.9 m²
(138.9 ft²)

Empty weight

286 kg
(631 lb)

Max. take-off weight

450 kg
(992 lb)

Fuel capacity

78 l
(20.6 gal)

Fuel consumption

18.5 l/h
(4.9 us gal/h)

Maximum speed

198 km/h
(123 mph)

Cruise speed

177 km/h
(110 mph)

Stall speed

49 km/h, 57 km/h
(30 mph, 35 mph)

Take-off distance required

55 m
(180'05" )

Landing distance required

70 m
(229'07" )

Description

True STOL concept: landing and taking off from short field is its vocation! The Savannah™ XL becomes part of the I.C.P. aircraft fleet with an aim: making the flight as pleasant as possible thanks to the new generous dimension of the cockpit and the panoramic windows that offer excellent visibility. Equipped with Vortex Generators and with an improved aerodynamic line, sweet and tapered that end with a spinner diameter 260 mm, this ultralight has a cruising speed of 180 Km/ph, with maximum comfort. To gain speed and thus further range, the front streamline has been revised sloping the windshield more and fully redesigning the engine cowling. The large instrument panel is well suited to contain full instrumentation with the most various instruments. StructureClick to show – The Savannah™ XL VG is a monoplane type, with two side-by-side seats, fitted with a high wing supported by struts. – The airframe structure is a full-metal one with load-resisting panels. – The wing presents a “high lift” NACA 650-18 modified airfoil with Junkers type flaperon (aileron + flap) with manual or electrical (optional) control. – Trim with electrical control on the elevator and with manual control on the rudder. – It’s possible to install a parachute “Junkers 500” type.
