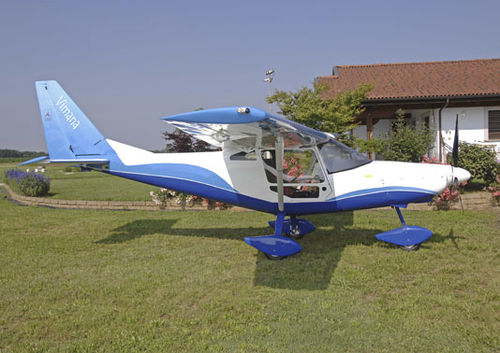

2-person ULM aircraft Vimana®
4-stroke enginetouristsingle-engine

2-person ULM aircraft
2-person ULM aircraft
Add to favorites
Compare this product


Characteristics

Number of seats
2-person
Motorization
4-stroke engine
Applications
tourist
Other characteristics
single-engine
Length

7 m
(22'11" )

Height

2.9 m
(9'06" )

Wingspan

8 m
(26'02" )

Wing surface

9.4 m²
(101.2 ft²)

Empty weight

286 kg
(631 lb)

Max. take-off weight

450 kg
(992 lb)

Fuel capacity

78 l
(20.6 gal)

Fuel consumption

18.5 l/h
(4.9 us gal/h)

Range

800 km
(497 mi)

Maximum speed

220 km/h
(137 mph)

Cruise speed

197 km/h
(122 mph)

Stall speed

60 km/h
(37 mph)

Take-off distance required

75 m
(246'00" )

Landing distance required

70 m
(229'07" )

Description

The Vimana® was shown in June 2006, during the most important aircraft fair of the year. Extremely versatile and with attractive lines, this aircraft has become at once a new point of reference for the passionate. Fully planned by I.C.P., it is produced following the most strict safety canons. The maximum comfort you can desire on an ultralight aircraft… – The Vimana® is a monoplane type, with two side-by-side seats, fitted with a high wing supported by struts. – The wings are trapezoidal with aerodynamic profile NACA 23015, provided with twist and dihedral and its lift system consists of slats on the leading edge and double-slot flap on the trailing one. – The slats slide on 4 ways operated by the same amount of levers, which are handled by a torque tube. – The horizontal empennage is tapered and consist of a fixed stabilizer and a moving balancer. Both the fixed part and the moving one are carried out in two half planes. The left balancer is provided with trim wing and motor located in the front housing of the elevator with position indicator. – The two large lateral doors allow an easy independent access to the cabin. – The cockpit is completely sound insulated, with lining with upholstery or fitted carpet. – Excellent visibility thanks to the doors fully transparent. – The seats are in skin and side by side type. – The rudder pedals is adjustable. – Double controls are part of the Vimanas’ standard equipment. – The luggage van, situated behind the seats and accessible during the flight, may contain up to 45 lbs (20 kilograms) – It is possible to improve the cabin ventilation by using two rotating air scoops in the doors windows.
