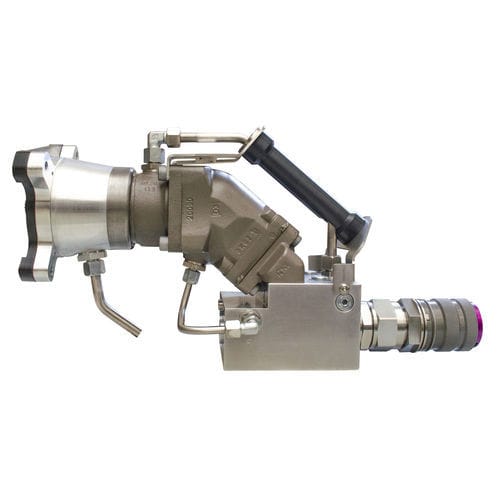

Pressure tester HRT-05

avionicsfor enginesfor accelerometers

IDEAL FOR FUNCTIONAL TEST OF RAM AIR TURBINE AS PER AMM FEATURES Certified and listed in Airbus Tool / Equipment Bulletin • High performance hydraulic motor • Handgrip for easy handling of the tool • Flange protector to prevent scratches to the aircraft ram air turbine • Internal flushing and cooling of the hydraulic motor • The ram air turbine of the aircraft will not be damaged in case of shaft seal failure of the hydraulic motor • Unique integrated feature to prevent cavitation of the hydraulic motor in case of emergency stop • Tool connects directly to the quick disconnect couplings of the hydraulic test stand • Heavy duty case with retractable extension handle and wheels TECHNICAL DATA REQUIREMENTS FOR HYDRAULIC TEST STAND Fluid Phosphate-Ester based fluids e.g. Skydrol or Hyjet Pressure 5000 PSI (350 bar) Flow 50 USgpm (190 l/min) Quick disconnect couplings Hycom HQD-030-HA MOTOR LENGTH WIDTH HEIGHT WEIGHT INCLUDING CASE 520 mm 190 mm 280 mm approx. 19 kg LENGTH WIDTH HEIGHT WEIGHT 690 mm 530 mm 480 mm approx. 32 kg
