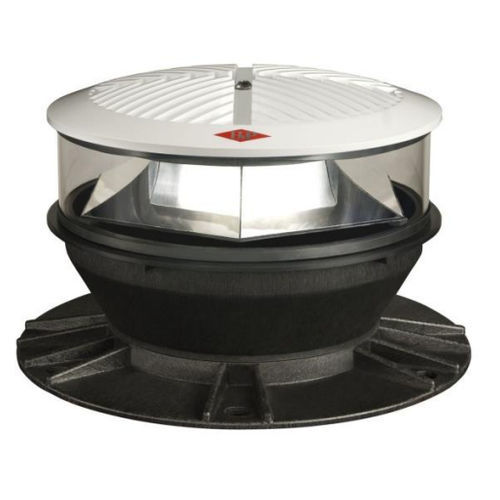

Obstruction lighting system HORIZON™ Catenary series

obstaclefor airportLED

Its self-contained power supply, with available GPS sync and day/night sensor, simplies wiring but also accepts external signals if desired. Advanced features include replaceable LED modules, cutting edge optics, individual LED monitoring/bypass, and active lightning protection. The unit also monitors the system and provides a NO or NC alarm contact upon any system failure. Application: The HORIZON™ Catenary LED obstruction lighting system is used on transmission towers and poles to provide an early warning to pilots of the catenary span between two structures. The flash rate of 60 FPM along with the three (3) tier MIDDLE-TOP-BOTTOM flash sequence, provides visual indication to pilots of the approaching transmission wires. The GPS module within the TOP light provides the synchronization between multiple catenary structures. An external photocell is used to provide transition between DAY-NIGHT. The EKLIPSE optics provides a “community friendly” light. Special consideration is taken for structures used to support High Voltage Transmissions, >250kV, with our ‘shielded’ lighting system. FAA Type: L-866, L-885 or L-866/L-885 Medium Intensity Lighting ICAO Type: Type A, B, A/B Medium Intensity Obstacle Light ETL Certified: FAA Advisory Circular 150/5345-43 Compliant to: ICAO Annex 14, MIL-C-7989, DGAC of Mexico, CAR 621.19 FEATURES - Original Equipment Manufacturer Single Flashhead Construction High Voltage Power Lines GPS Sychronization Wiring Compatibility Interchangeable LED Modules Cutting Edge Optics Design Lightest Flashhead Universal Input BENEFITS •Designed, engineered and manufactured by Hughey & Phillips •One source for fixtures and complété lighting systems
