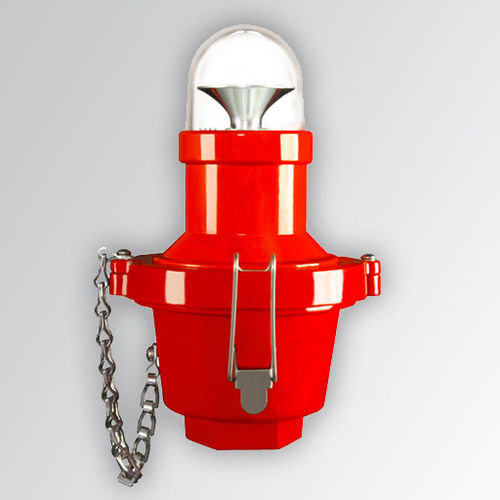

Obstruction light HORIZON™ L-810

for airportLEDred

The Hughey & Phillips L-810 Obstruction Light provides an LED based solution to the FAA L-810 style of steady burning lights. The L-810 LED is currently available in both single and double configurations operating at 120V, 240V, 265VAC and also in a range of 9-48 VDC. Both configurations are available as original equipment or as a direct replacement to the existing socket/lamp/lens on H&P L-810 Incandescent OB2x Series obstruction lights. FAA Type: L-810 Steady Burn Obstruction Light ICAO Type: Low Intensity Type B Obstacle Light Certified to: FAA AC 150/5345-43 Compliant to: Transport Canada CAR 621.19, ICAO Annex 14, USAF AFMAN 32-1076 (Product Sheet PDF) Features: LED based obstruction lights last over 15 times longer than an incandescent light Approximately 94% less power than 116 Watt standard incandescent lamp 4 Watt Power Consumption (AC version) / 3.4 Watts (DC Version) Available in both side and bottom conduit hubs at 3/4” and 1” NPT Weather resistant lamp assembly & housing Self-contained wiring compartment on double units eliminates additional boxes Operates as a steady burn or flashing light Resistant to shock and vibration Direct replacement for existing incandescent fixtures 5 Year Warranty Photometric Specifications: Beam Spread: 360° Horizontal, 10° Minimum Vertical Effective Intensity: > 32 Candela Mechanical Specifications: Base Material: Cast Aluminum with aviation red powder coat Lens: Heat resistant clear glass Single: 8” x 5.5” x 5.5” (H x W x L), 2 lbs. Double: 8” x 5.5” x 11.5” (H x W x L), 6 lbs.
