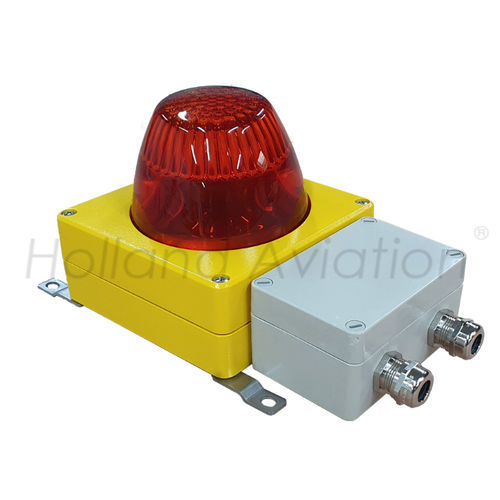

HA-OSH150-32 or HA-OSH150-50 is a low-intensity obstruction light to denote obstacles up to 45 meters/150 feet.
Weighs only 4,2 Kg and has a size of 160 x 244 x 150 mm.
An obstruction is an object that extends above an obstacle protection surface and shall be lighted at night.
The marking or lighting of obstacles is intended to reduce hazards to aircraft by indicating the presence of the obstacles.
Low-intensity obstacle lights, Type A or B, should be used where the object is less extensive and its height above the surrounding ground is less than 45 m.
Led technology Atex IECEx zone 2. This Obstruction light is suitable for land base and offshore use.
Holland Aviation HA-OSH150 type Low-intensity obstruction light with glass Fresnel lens, complying both to CAP437 and ICAO Annex 14 class A and B (10 Cd and 32 Cd).
This obstruction light has a high power led that has a power consumption of 5 watts. This light has an expected lifetime of >75.000 hours.
Additional information
Enclosure -
Aluminium, chromated and hot baked powder coated
Light Output -
ICAO Class A > 10Cd and ICAO Class B > 32,5 Cd
Service life of the LED's -
> 75.000 Hours
Dimensions -
160 x 240 x 175 mm
Cable Gland -
2x M20
Ambient Temperature -
-40˚ C to + 60˚ C
Ingress Protection -
IP 66
Optional -
Flashing 30, 60, 90 or 120 Fpm
Power consumption -
Approx. 5 Watt
Power supply -
110-370 VDC, 90-264VAC
