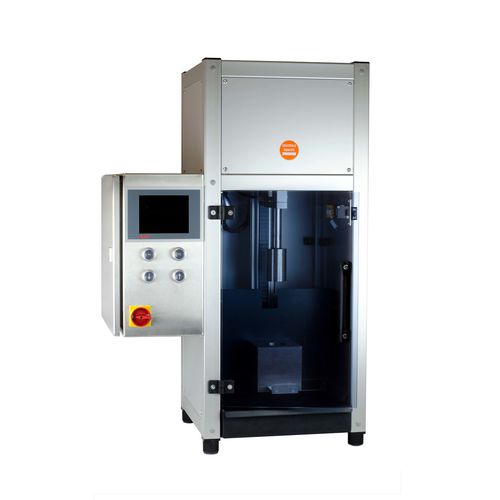

Force test instrument PMST

avionicsaeronauticalcompact

Test equipment to determine the mass strength of pelleted carbon black as per ASTM D1937. The test method ASTM D1937 “… is designed to determine the force required to pack a cylindrical column with pelleted carbon black. The results of this test are believed to relate to the ability of the carbon black to flow in bulk handling systems.” … “Mass strength gives an indication of the flowability in bulk handling. It is affected by pellet properties such as hardness, size, shape, and especially fines content.”** Excerpts from chapter 1 resp. 4, of ASTM D1937-18 Key features State-of-the-art design Standalone device with programmable controller with 5.7” display, 640×480 px Software guided measurement sequence according to ASTM D1937 Software guided load cell calibration 4 robust push buttons for “dirty” operations Stepper motor driven plunger with position feedback of sample height Force measurement by load cell Linear carriage with load cell, stepper motor driven with accurate load application up to 30 mm/s and with position reading Anodized aluminum frame and fully dust proof stainless steel electronic cabinet Compact table model – small footprint AC mains supply only (no compressed air) – wide range mains 90 to 240 VAC
