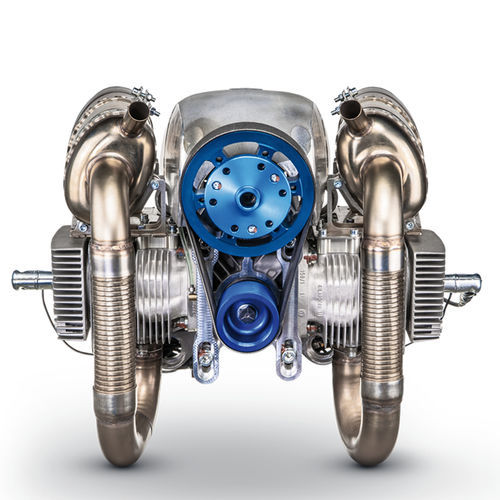

10 - 50hp piston engine F23

10 - 50kgfor light aircraft2-stroke

Sets world-class standards in its power-to-weight ratio for the 50-horsepower market achieving performance and reliability unmatched in the industry. This engine series offer a time between overhauls of 1000 hours and is fit to take on any challenge in the future. Air Cooled World standard power-to-weight ratio Fit to take on any challenge in light aviation OPTIONS: Dual ignition Fuel injection Polyflex beltreduction G23 Electric starter Exhaust system (acc. to version) Air filter (2 pcs.) DISPLACEMENT: 521 cm3 (31,8 cu in) STROKE: 64 mm (2,52 in) BORE: 72 mm (2,83 in) MAX. PERFORMANCE: According to DIN 70020 MAX. TORQUE: 53 Nm (38,9 ft. Lb) at 6300 rpm IGNITION SYSTEM: CDI controlled by the ECU COOLING: Air cooled FUEL MIXTURE : Mixture 1:50, 2-stroke-oil, fuel min. 95 octane (RON) Mixture 1:80-100 with BLUEMAX 2-stroke-oil, fuel min. 95 octane LENGTH: 286 mm (11.25 in) WIDTH: 570 mm (22.44 in) HEIGHT: 338 mm (13.30 in) STARTING DEVICE: Recoil starter RUNNING DIRECTION: Counter-clockwise, view to output shaft GENERATOR POWER: 250W, 12V CARBURATION: Slide carburetor (Mikuni) (AS) Diaphragm carburetor (Mikuni) (BS) Multi point injection (ES)
