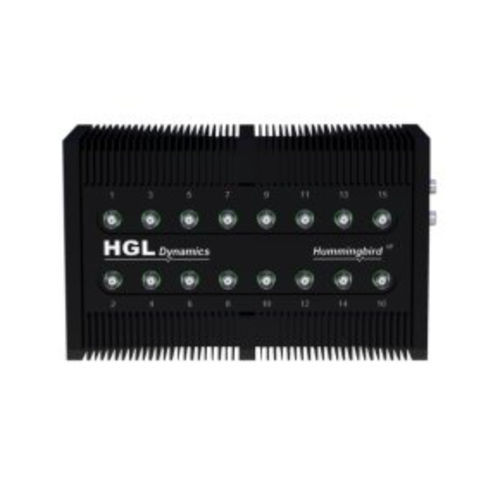

Data acquisition system for aerospace applications Hummingbird

16-channel32-channelEthernet

16-32 Channels 100 kHz Bandwidth 120 dB SNR Ultra Portable and rugged 24-bit ADCs Per Channel 1x, 10x, 100x Gain AC, DC, ICP Input 1/4, 1/2, Full Strain Bridge Dynamic Strain True CI / CV Capability Gigabit Ethernet Data Link Core i7 Processor Multi-Unit Sync Hummingbird II is an enhanced data acquisition system based on the concept of the successful Hummingbird launched in 2006. Hummingbird II is designed to provide a world-class, ultra-portable solution for dynamic data recording and real-time monitoring. Hummingbird features 16 or 32 analogue input channels. 24-bit delta sigma A to D converter per channel Synchronous sample rates 5-256 kS/s (up to 100 kHz bandwidth) A variety of conditioning options Synchronous sampling across multiple Hummingbird II units using LVDS Full Core i7 CPU built-in to allow autonomous operation Small and rugged for test vehicle mounting Large (128, 256, 512 GB) Solid State Disk for data storage
