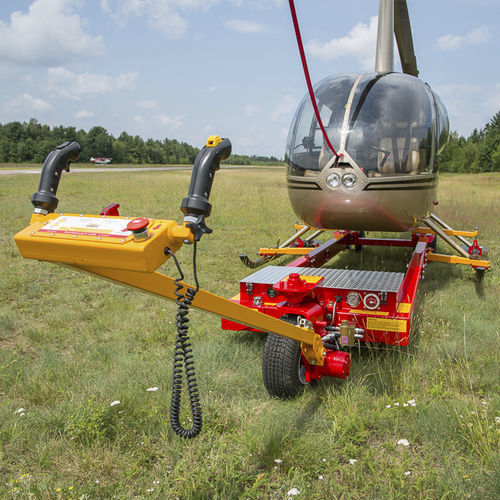

Towing tug V1018

for helicopterelectrictowbarless

The V1018 is for owners of a small single helicopter such as the Bell 505 or for light operations in climate friendly conditions. Length*: - 498 cm (172 inches) Width: - 122 cm (48 inches) Pump: - 6.c.c. PARTICULARITIES Support Wheels: - Pneumatic (CAN BE FILLED WITH URETHANE ON REQUEST) Pressure: - max 90 psi Arms: - Lighter built attachment arm GENERAL CARRIER SPECIFICATIONS Operation: - Right hand grip slider button controls low speed horizontal movement. Left hand grip slider button controls vertical movement. For extra safety: Fast speed requires holding both grips. Index finger on left hand grip activates fast speed mode. Hydraulic Traction Wheel Motor: - V1018 to V1022 : 800 lbs straight pull V1030 to V1040 : 1200 lbs straight pull for more capacity Traction Wheel: - Type: Deep set threads pneumatic tire / 65 psi operation. Wheel: 16.5"x6.5" (42 x 17cm) with 8" (20cm) hub. Hydraulic Pump: - Gear Pump Max: 3200 psi V1018 to V1022 6.c.c. V1030 to V1040 8.5.c.c. for hydraulic motor higher flow Drive Motor: - 48V electric 20 hp fan cooled motor (15 kW). Built for continuous use Electrical System: - 48V Electric Motor with 12V converter for valves driver. Converter ensures batteries discharge equally. 24V to GPU (Sold Separately) Batteries: - V1018 : 4 x 12V deep cycle batteries (Group 40) V1020 to V1040 :4 x 12V deep cycle batteries (Group 27) Battery Charger: - 115/230v / 10 amps. Battery Autonomy: - V1018 : 6-8 Hangaring Cycles * V1020 to V1040 : 10-12 Hangaring Cycles * * Based on 500’/150m distance on flat surface with an exterior temperature of 59°F/15°C. Helicopter weight may also affect battery autonomy.
