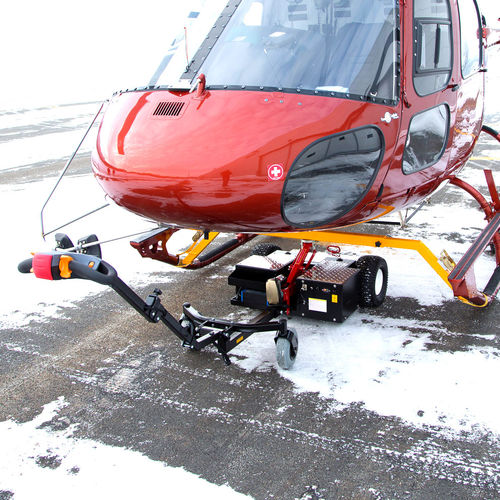

Towing tug V301

for helicopterelectrictowbarless

The V301 is a beefed-up version of the V201 model. It's de-rated gear system significantly increases traction. Ideal for AS350, B206B, EC120 & Robinsons on terrains with challenge. Already very popular. Lift: - Electrical Lift Frame: - Heavy Duty & Extendable Main Frame Handle: - Tiller Head Handle Torque Configuration: - Added De-Rated Gears Systen Front wheels: - 2 x Swivel wheels 6" (15cm) Rear wheels: - 2 x Traction 13"x6" (33x15cm) Ground Clearance: - 2" (5cm) Attachments - Attachment system can be interchanged from AT44 block for Robinsons to AT45 Universal attachment bar. Minimum clearance with AT45 attachment bar is: 16.25"(41cm) GENERAL LIGHT CARTS SPECIFICATIONS Traction System: - 2x 300 watts motors Batteries: - 12 volts deep cycle 2x Group 24 70-85 amps hour 10 7/8"x6 3/4"x9 7/8" (28x17x25cm) (Batteries not included) (Known as "marine" or "Camping Car", readily available worldwide) Battery charger: - 4amps, 115/230v (Included) Control Panel: - Popular Ergonomic Tiller handle allowing very precise movements Parking Brakes: - Set to OFF position for free wheel mode (Can be put in ON position for slope operation).
