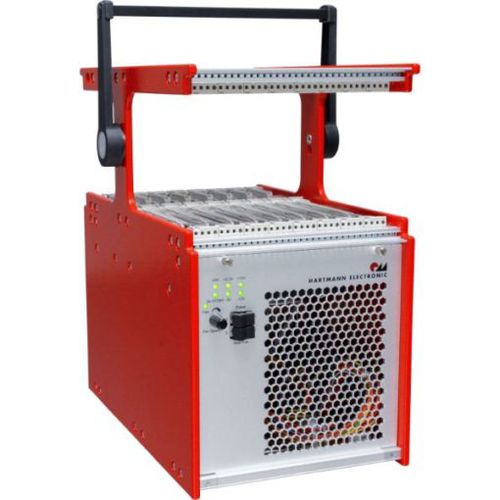

Aeronautic backplane chassis Open Frame

benchtop12 slots8 slots

The Hartmann Electronic Open Frame Development Chassis Series is our most diverse system yet. Available for 3U or 6U, with 34HP or 50HP with space for up to 12 slots, this versatile test system is sure to be an engineer’s best friend. A strong frame with an adjustable locking grab handle, along with a light-weight design make our Open Frame Chassis the perfect companion for easy transport from the lab to the testing grounds. The Open Frame Chassis have built in manual controlled 120mm front fans and monitoring for fan and voltages. Optionally the customer can have conduction cooling arrangement for single slots or for the complete chassis. Different widths and combinations of 3 and 6U slots are available also. These systems are available with or without a backplane, in air cooled or conduction cooled variants, and with 600W ATX power supplies. Backplane options include variants of cPCI, Serial, PXI, VME, VPX and more. Custom configurations available upon request. Ask your Hartmann for more details. Designed to be beautiful, this chassis provides flexibility and ease of use to meet all the requirements by test and development engineers. With its exceedingly high-performing 1800W ATX power supply the chassis is designed for up to 120 amperes at 12 volts. One of the outstanding features of the development chassis is the cooling system. Up to ten high-power fans are integrated to ensure sufficient cooling for every conceivable application of the boards. Standout features are its high application flexibility and the power supply unit. Optionally our all-new SOSA™ aligned 7 slot VPX backplane designed for 100Gbit/s Ethernet can be integrated into the chassis.
