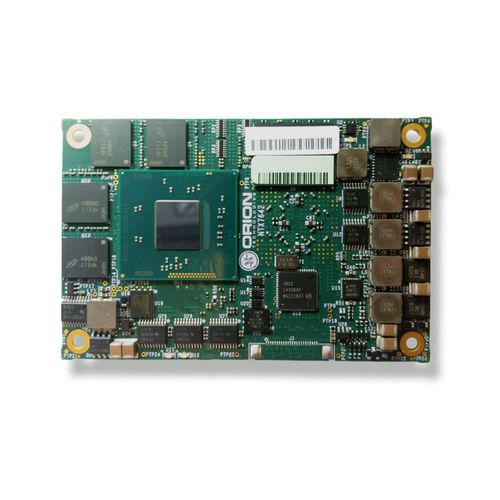

Circuit board COM EXPRESS®

COM Express® is a PICMG® standard that defines a Computer-On-Module in a family of Small Form Factors (SFF). It is single board computers appropriate for a wide range of commercial and mil/aero applications. COM Express is used in Military/Aerospace, Transportation, Industrial, Medical and General Computing embedded applications. The COM modules plug into a baseboard that is typically customized to the application. Additional Information COM Express® including PCI Express Gen 3, 10GbE, SATA, USB 3.0, and high resolution video interfaces. On request, we develop application-specific carrier boards and complete systems together with our customers. Features Intel® Cedarview 1.6GHz Dual Core processor Intel® NM10 Chipset Ultra small form factor (55mm x 84mm) with enhanced ruggedization COM Express Type 1 Signaling On-board temperature monitoring Up to 1GB soldered of DDR3 SDRAM Intel® HDA Audio On-board SATA NAND Flash Drive (Bootable) Eight USB 2.0 ports LVDS and VGA Video Low Pin Count (LPC) bus I2C Interface Insyde Software BIOS Various Board Support Packages (BSP’s) available including Linux, WindRiver VxWorks & Windows
