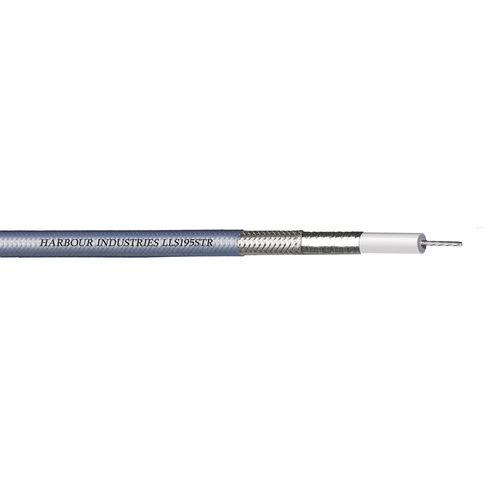

Airplane cable LLS

datasolidspiral

The inner silver plated flat strip shield coupled with higher velocity expanded PTFE tape dielectrics yield lower attenuation levels over operating frequencies. LLS cables are smaller and lighter weight than comparable LL flat strip braid constructions. Return loss improved by minimizing inherent spikes from the strip braid and interlayer. Shielding Effectiveness levels have been measured at <-110dB Special connectors have been designed and are readily available. Special constructions are the norm rather than the exception, so please make sure you contact Harbour Industries sales@harbourind.com if you don’t see the specific construction for your application. Construction: Center Conductor: Solid or standed silver plated copper Dielectric: Expanded PTFE tape Inner Shield: Spiral strip of silver plated copper Outer Braid: Round silver plated copper Jacket: Blue translucent FEP Velocity of Propagation 81%-85% Impedance 50 Ohms Shielding Effectiveness <-110 dB
