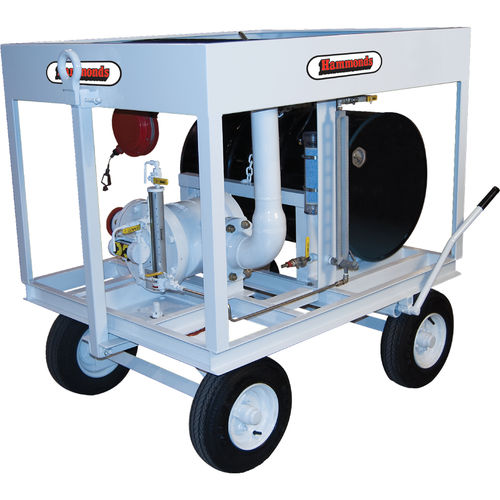

Towed hydrant cart

Designed specifically for high rate, large volume transfers, these systems handle typical airline fueling operations. Operation is automatic with nothing to turn on and off or adjust. Handles Ratios up to 2500 ppm Accurate additive dosage Thorough, complete blending Easy custom connections Inject up to 4 additives SPECIFICATIONS Hammonds Model 800 fluid motor Hammonds 1S pump for ratios up to 400 ppm Number of additives: 1 standard, 2, 3, or 4 optional Product Inlet: Single point receptacle Product Outlet: Single point fueling nozzle Injection ratios: 0-4000 PPM depending upon application 75-700 GPM (284-2,649 l) continuous operation standard 50-750 GPM (189-2,838 l) intermittent operation Product temperature range: -40° - +250° F (-4.4° - +121.1° C) Maximum product line pressure: 100 PSI 55 gallon (208 l) drum rack with hold down Drum quantity level gauge HV Sight Flow Indicator with suction strainer Large capacity desiccant dryer Product hose: 15' x 2 1/2" aviation fueling hose Stainless steel flexible additive hose with quick disconnects Parking brake Static ground reel 4.80 x 8" (12 x 20 cm) F.O.D. tires Product viscosities: to 10,000 SSU Fuels, oils, additives, and liquid gases CONSTRUCTION MATERIALS Hard anodized aluminum or carbon steel Metering pump: All wetted parts 300 series stainless steel Elastomers: Aflas, Viton and Teflon Mechanical Seal: Carbon on ceramic Overall dimensions: 47" W x 55.5” L x 57" H Weight: 1,000 lbs.
