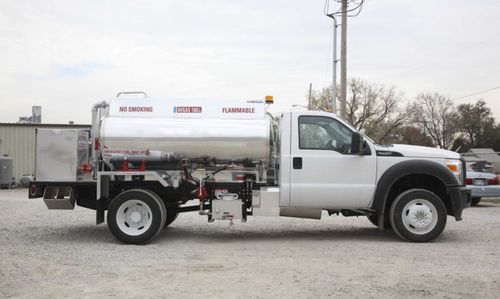

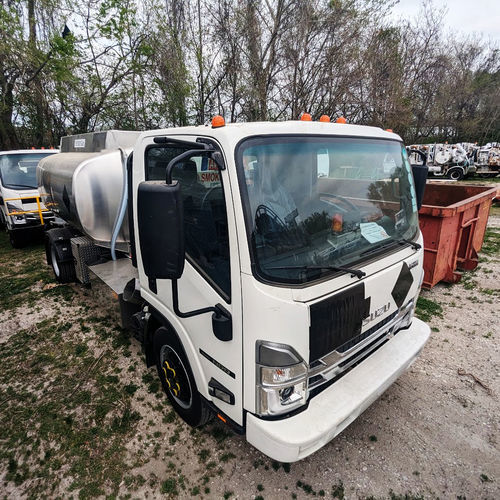

Self-propelled refueller Avgas

for airport

Avgas Refueler with 750-1,500 U.S. gallon aluminum tank fully baffled, single compartment, overturn protection, 20” manhole with 10” fill, and pressure vacuum vents. Chassis – Conventional cab-chassis gasoline engine, automatic transmission. Diesel and cab-over models are available. (Detailed specifications available upon request.) STANDARD DIMENSIONS: 17’L x 84”W x 96”H PUMP: Positive displacement type, PTO driven. HOSE REEL: Sized for 1½” x 50’ hose, non-ferrous internals, explosion-proof electric rewind motor and auxiliary manual rewind. A shut-off valve is installed immediately upstream of the hose reel. HOSE: One 1” x 50’ aviation fueling hose with N/R male couplings, certified to API 1529. NOZZLE: One avgas refueler overwing nozzle with swivel and 100 mesh strainer. BOTTOM LOADING: Includes a jet level sensor control system for automatic high-level shut-off with precheck. Adapter and dust cap to be specified with each truck to match the loading facility. A shut-off valve shall be supplied immediately downstream of the bottom-load adapter. PIPING: Schedule 10 aluminum piping – 150 PSI rated working pressure. LADDER BRACKETS: On rear bumper. TEST: Flow tested with fuel for performance to rated specifications.
