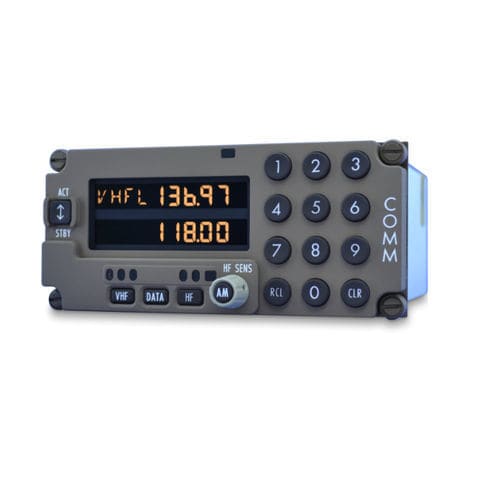

Radio transceiver G7424-01

VHFHFAM

The Gables G7424 Series Radio Tuning Panels offer keyboard frequency entry for VHF and HF tuning. The RTP is offerable as Supplier Furnished Equipment on the B747-8 via Rockwell Collins. For non-B747-8 aircraft, the G7424 can be installed via third party STC. Description 8.33 kHz capable Frequency/channel keypad entry Frequency/channel cross tuning VHF and HF radio status monitoring VDL Modes 0, A, 2 capable Voice mode protection capable VHF 2/3 data capable VHF COMM test VHF 3, HF 1, HF 2 absent discretes Cross side radio tuning indication Dual HF data link capable Dual HF RF sense control HF AM/SSB modulation control HF 0.1 kHz spacing capable High contrast LED backlit LCD Non-volatile storage of front panel settings Built-in-test (BIT) Modular construction contributes to economical maintenance Liquid spill-proof design Reliable switch design (one million actuations) White LED display and panel lighting for higher reliability
