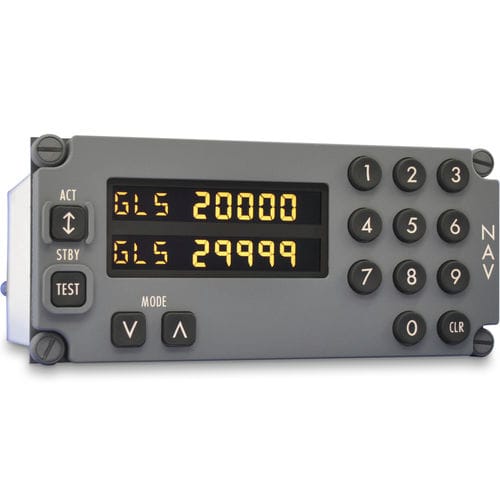

ILS NAV/COM G7501-01

VORpanel-mountfor aircraft

The Gables G7501-01 is certified by Boeing for installation on the B737-NG and the 737-MAX. Description Provides tuning control of VOR, ILS, DME, MLS and GLS Provides internal fault monitoring and recording capability Liquid spill-proof design Reliable switch design (one million actuations) White LED display and panel lighting for higher reliability Built-in-test (BIT) capability Modular design provides flexibility for custom layouts Modular construction contributes to economical maintenance MTBF (Calculated): 22,000 operating hours Additional information Dimensions - 2.610 (height) x 5.735 (width) x 5.5 (depth) inches, excluding rear connectors Weight - 2.5 pounds (max) Frequency Range - GLS – 20,000 to 99,999, ILS/VOR (VHF NAV) – 108.00 MHz to 117.95 MHz, MLS – 500 to 699 Power - Power – 115VAC@400Hz. 4w max, Panel & LCD Lighting 0-5VAC variable (LED) Connectors - J1 Mating: BACC63CB22-55SN, or equivalent 55 pin connector, J2 Mating: BACC63CB22-55S8, or equivalent 55 pin connector Color - Front Panel – Non-reflective Gray FEDSTD 595b36118, Front Panel Markings –White FEDSTD 595b37875 (FuturaMediumfont), Push Buttons – Non-reflective Black FED STD 595b37038 Compliance - ARINC 429, ARINC 709, ARINC 710, ARINC 711, ARINC 720, ARINC 727, ARINC 755, Boeing D6-38859-1, Boeing D6-52191-1 Rev B, RTCA/DO-160D (Environmental), RTCA/DO-178B (Software) Certification - Aircraft - B737-MAX, B737-NG Certification - Regulatory - TSO-C36e, TSO-C40c, TSO-C66c, TSO-C104, TSO-C161 Calculated MTBF (op hours) - 22,000
