Centrifugal supercharger R.400.003 / R.400.004
100 - 300hp

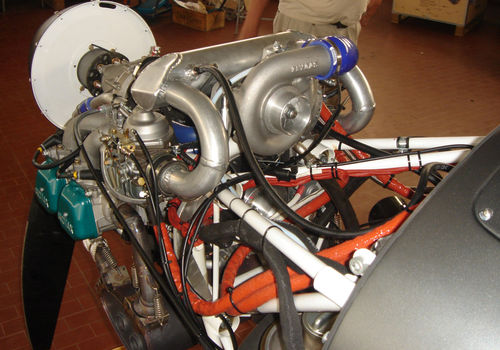

Centrifugal supercharger - R.400.003 / R.400.004 - FLYGAS ENGINEERING - 100 - 300hp

Centrifugal supercharger - R.400.003 / R.400.004 - FLYGAS ENGINEERING - 100 - 300hp - image - 2

Centrifugal supercharger - R.400.003 / R.400.004 - FLYGAS ENGINEERING - 100 - 300hp - image - 3

Centrifugal supercharger - R.400.003 / R.400.004 - FLYGAS ENGINEERING - 100 - 300hp - image - 4

Centrifugal supercharger - R.400.003 / R.400.004 - FLYGAS ENGINEERING - 100 - 300hp - image - 5

Centrifugal supercharger - R.400.003 / R.400.004 - FLYGAS ENGINEERING - 100 - 300hp - image - 6

Add to favorites

Compare this product

Characteristics

Type: centrifugal
Power: 100 - 300hp
Rotational speed: 5,800 rpm
(36,442 rad.min-1)

Description

CENTRIFUGAL SUPERCHARGER SYSTEM, by FLYGAS (code R.400.003) For Engine type: Rotax 912ULS Engine Mount: With Rotax Ring (white) Position of Supercharger: Top High (between carburattors) Bracket: Plate for Rotax Ring Mount Oil Plan: Separated oil pump, oil tank etc (Independent from engine oil) * *in this configuration, is possible to choose to use engine oil, and in this case not install the “separated oil plan” and save installation weight. CENTRIFUGAL SUPERCHARGER SYSTEM, by FLYGAS (code R.400.004) For Engine type: Rotax 912UL, Rotax 914 (After removing turbo and TCU) Engine Mount: With Rotax Ring (white) Position of Supercharger: Top High (between carburattors) Bracket: Plate for Rotax Ring Mount Oil Plan: Separated oil pump, oil tank etc (Independent from engine oil) * *in this configuration, is possible to choose to use engine oil, and in this case not install the “separated oil plan” and save installation weight.
