Towing tug FLT 500 RC electro

for aircraftelectrictowbarless

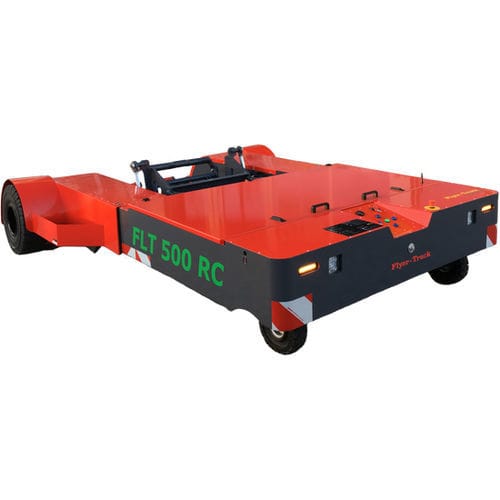

The Flyer-Truck FLT 500 RC electro is an aircraft tug for business jets up to 50 tons MTOW. A multi-talent for airplanes with single and double nose wheels. It combines the demand for value stability, easy of use, flexible use without mechanical conversion measures and the highest quality workmanship. drive system 2 AC drive motors 3 pulse controls battery 48V 480Ah lead-acid batteries battery charger HF charger 48V 50Ah with charge level indicator and power conservation device with cell balancing, 380V main power brake Holding oil multi-disc brake speed 2-stage, regulation via joystick operating range about 24 km depending on the speed and loading frames Max. loading: 5.500 kg, 12.125 lbs Empty weight: 3.350 kg dimensions: LxWxH 3.35 x 2.59 x 0,63 m ground clearance: 136 mm steering Remote control With 2 finger joysticks (forward and backward / left and right) Operator button for the landing gear bracket, fast and creep speed, light, safety operating landing gear bracket Electric hydraulic landing gear bracket: - complete electrical guided lifting and holding hydraulic - hydraulic door opening and closing system - ramp hydraulic for different wheel diameter - rotatable draw roll - wheel hold system for safety anti output - wheel down holder landed for single and double landing gear wheels - safety system anti uncontrolled opening of the door opener Dimensions: - max. landing gear width 660 mm - lifting height 140 mm axes Front axle: pendulum axle with electric steering Drive axle: single drive closed, with multi-disc brake tires 2 piece drive wheels, solid rubber, heavy duty, 225-75R10 2 steering wheels, heavy duty, 400 x 4 lighting / safety device
