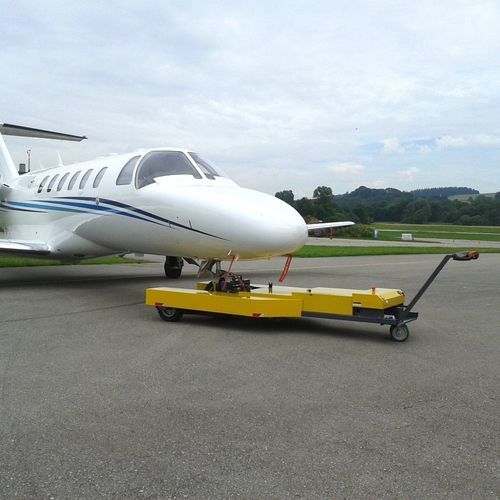

Towing tractor FLT 180 electro

for aircraftelectrictowbarless

The Flyer-Truck FLT 180 electro is an aircraft tug for medium business jets up to 18 tons MTOW. A multi-talent for airplanes with single and double nose wheels. drive system Electric engine AC 24V 3 kW Differential axis TX2 Pulse contact control battery 4x 12V 134 Ah battery charger HF charger 230/24V 50Hz with charge level indicator incl. 230 V adapter cable 1.5 m (charging cable) brake Spring power brake magnetic 20 Nm speed frames Loading weight: 2500 kg, weight empty: 680 kg dimension: L x W 3.83 x 1.51 m steering Drawbar steering header Plastic case with driving switches, fast and creep speed, signal horn landing gear bracket Variant 1: Electric hydraulic landing gear bracket EWEH - with powerful belt winch - mechanical safety pin Variant 2: Electric hydraulic landing gear bracket HDCS: - electric-hydraulic guided lifting and holding hydraulic - with door opening and closing system - ramp for different wheel diameter - wheel hold system for safety anti output - safety system anti uncontrolled opening of the doors tires Steering wheel: Double steering wheel, heavy duty Drive wheels: 16x6-8 Solid tire
