Monitoring camera A65

thermal imagingthermalfor airport

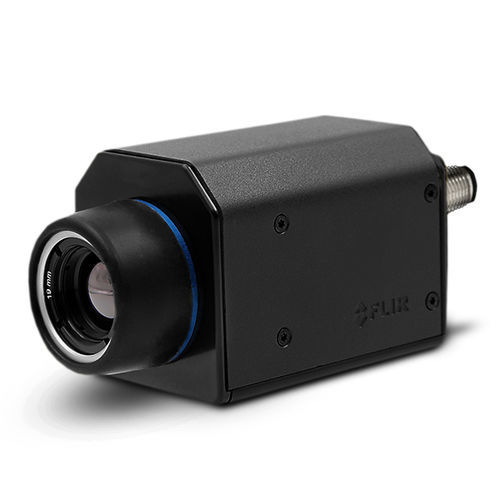

The FLIR A65 is a thermal imaging temperature sensor for process control/quality assurance, fire prevention, and condition monitoring that offers comprehensive visual temperature monitoring. The A65 integrates seamlessly into existing systems and provides temperature linear output through GenICam™ compliant software. AFFORDABLE AND COMPACT At just 4.1 × 1.9 × 1.8 in, the A65 brings thermal imaging to your smallest spaces at an affordable price. PLUG-AND-PLAY Easy setup thanks to GigE Vision and GenICam compliance and GigE Vision lockable connector. CONNECT MULTIPLE CAMERAS Synchronize between multiple cameras for greater coverage and communication, or for stereoscopic applications. SPECIFICATIONS Digital I/O connector type - 12-pole M12 connector (shared with Digital Synchronization and External power) Digital Inputs - 1× opto-isolated, "0" <1.2 VDC, "1" = 2–25 VDC. Digital Output Purpose - General purpose output to ext. device (programmatically set) Digital Outputs - 1× opto-isolated, 2–40 VDC, max 185 mA EMC - EN 61000-6-2 (Immunity) EN 61000-6-3 (Emission) FCC 47 CFR Part 15 Class B (Emission) f-number - 1.25 Image Frequency - 30 Hz Thermal Sensitivity/NETD - <0.05°C @ 30°C (86°F) / 50 mK Accuracy - ±5°C (±9°F) or ±5% of reading
